Code: GCM18V-12SDN14
Code: GCM18V-12SDN14
| Quantity | Include |
|---|---|

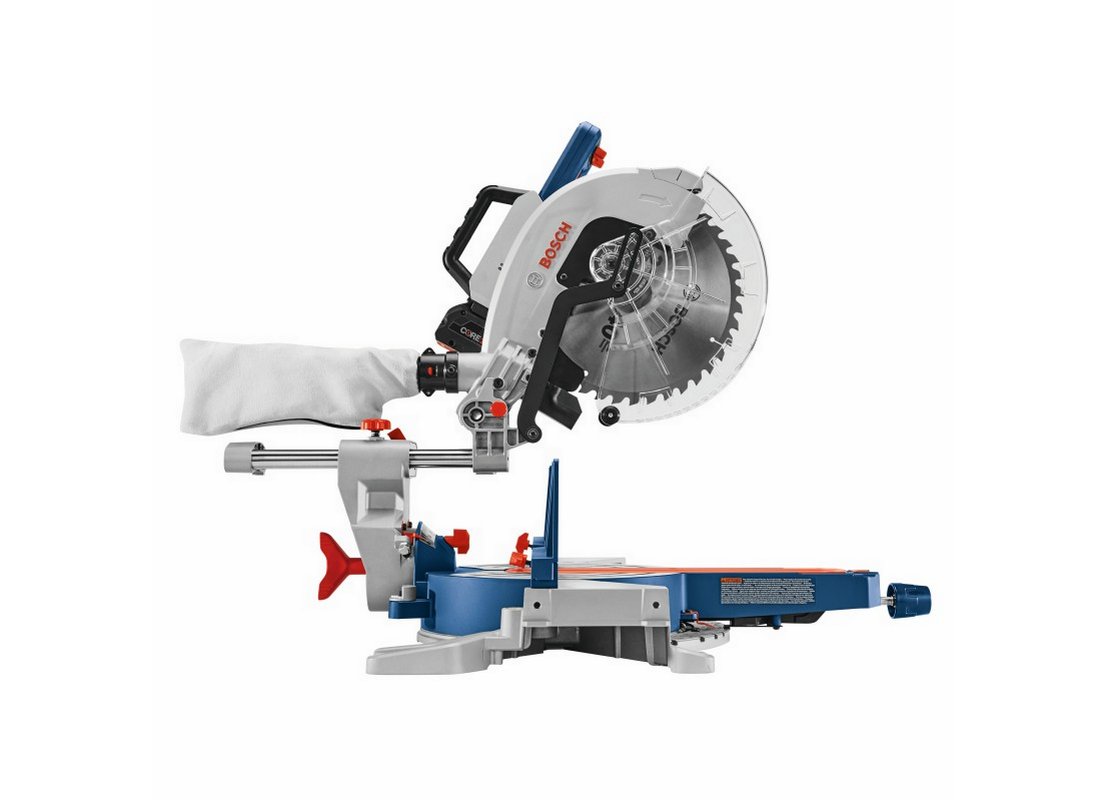

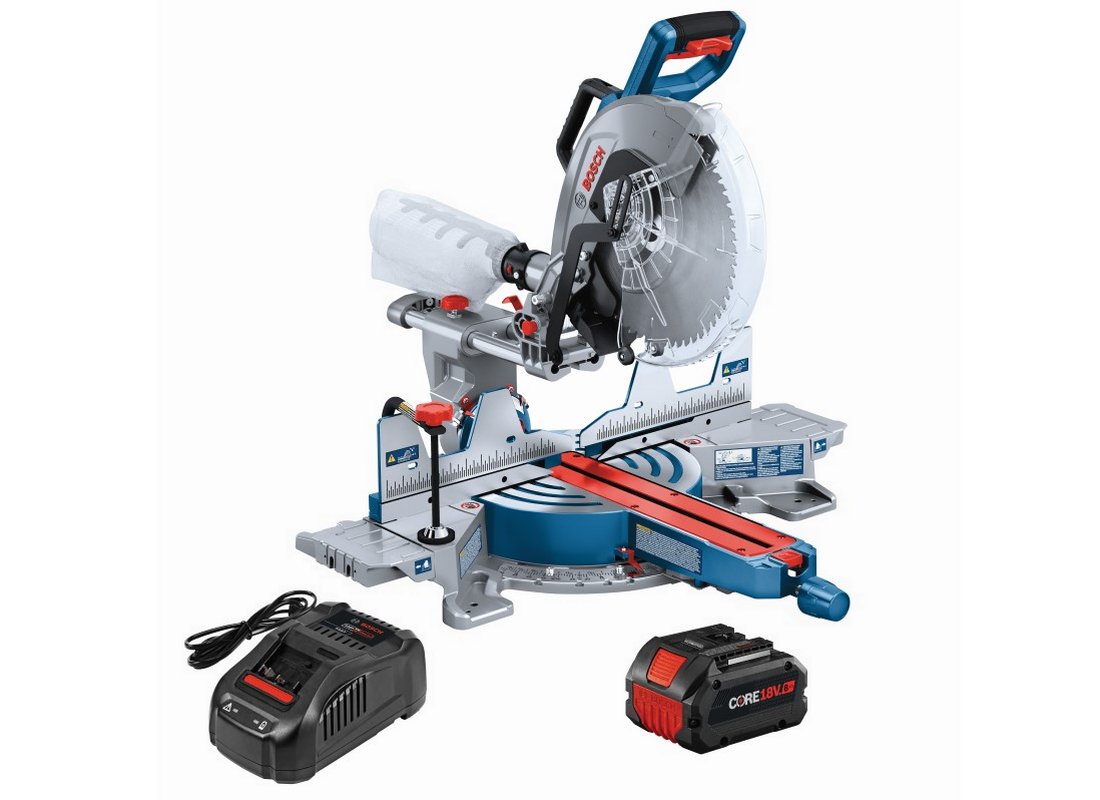

| 1 | GCM18V-12SD PROFACTOR™ 18V 12 In. Dual-Bevel Slide Miter Saw |
| 1 | GBA18V80 18V CORE18V® Lithium-Ion 8 Ah High Power Battery |
| 1 | 18V Charger |
| 1 | 12 In. Miter Saw Blade |
| 1 | Tool-Free Workpiece Clamp |
| 1 | Dust Bag |
| 1 | Blade Wrench |
for a truly mobile jobsite solution, this saw provides light weight and pro capacity

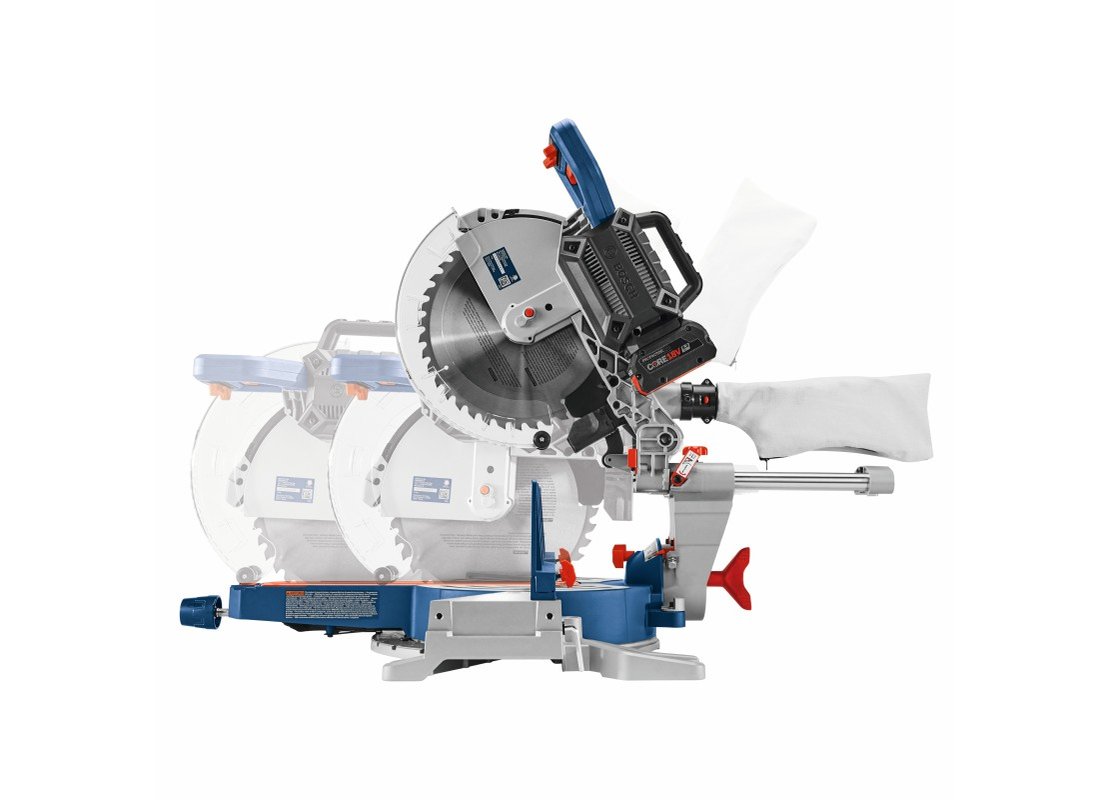

features a cut capacity of 3.5 In. depth and a 14 In. width/crosscut

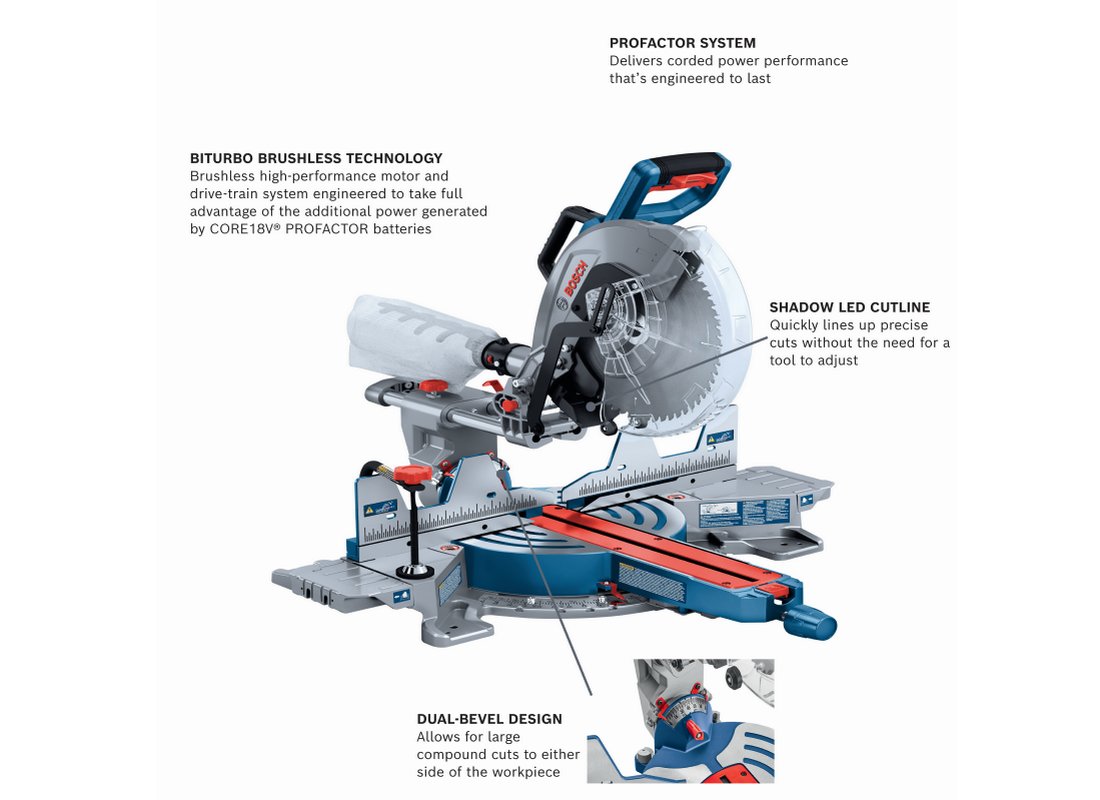

provides an accurate guide to quickly line up precise cuts without the need for a tool to adjust

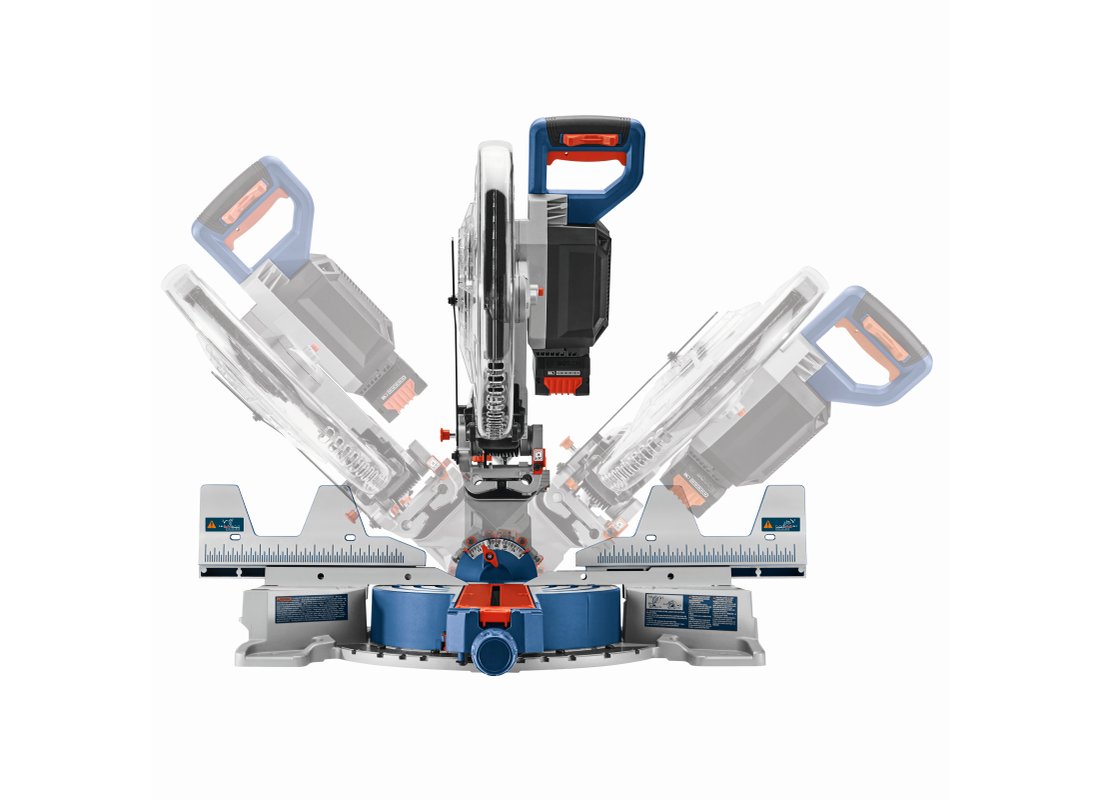

allows for large compound cuts to either side of the workpiece
features an easy-to-read scale with detents at common angles
featuring a brushless high-performance motor and drive-train system engineered to take full advantage of the additional power generated by CORE18V® High Power batteries (sold separately)
weighs only 52.4 Lbs. (tool only, not including battery) and features a carry handle
supports taller material for accurate cuts with 5.5 In. fences
dust bag included or connect to a vacuum with ease
stabilize workpieces while making your cut
for quicker blade changes
compatible with Bosch 18V tools and delivers 2x more runtime than GBA18V40
designed to be multi-brand compatible across many cordless products to make managing your work day easier
18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99+
| Battery Chemistry | Lithium Ion |
| Bevel Angle Range | 47° left and 47° right |
| Bevel Stops | 0°, 33.9°, 45° and 47° (L/R) |
| Blade Diameter (in) | 12.0 |
| Blade Size | 12" |
| Case Type | No Case Included |
| Electric Motor Brake | Yes |
| Height in | 28.0" |
| Length in | 39.5" |
| Max. Base Molding Against Fence | 6-3/4 in. |
| Max. Crown Molding (38° Spring) Angled Against Fence | 6-3/4 in. |
| Max. Crown Molding (45° Spring) Angled Against Fence | 7-1/2 in. |
| Max. Cut Capacity - 0° Miter 0° Bevel | 3-1/2 in. x 14 in. |
| Max. Cut Capacity - 0° Miter 45° Left Bevel | 2 in. x 13-1/2 in. |
| Max. Cut Capacity - 0° Miter 45° Right Bevel | 1-1/2 in. x 13-1/2 in. |
| Max. Cut Capacity - 45° Miter 0° Bevel | 3-1/2 in. x 9-1/2 in. |
| Max. Cut Capacity - 45° Miter 45° Left Bevel | 2 in. x 9-1/2 in. |
| Max. Cut Capacity - 45° Miter 45° Right Bevel | 1-1/2 in. x 9-1/2 in. |
| Max. Depth at Max Bevel | 2.0 |
| Miter Angle Range | 52° Left, 60° Right |
| Miter Detents | 0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right) |
| Miter Positive Stops | 0°, 15°, 22.5,° 31.6°, 45° (Left/Right), 60° (Right) |
| Works With | Recommended Battery Packs to help achieve maximum tool performance GBA18V80 and GBA18V120 Batteries Miter Saw Stands T1B, T4B, GTA3800 Crown Molding Stops (Pair) MS1233 Anti-Static Vacuum Hoses VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses. Other Vacuum Hoses VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses Adapters for 1-1/4 in. and 1-1/2 in. Vacuum Hoses VAC024 (VAC002 is not compatible) |
| Includes | (1) GCM18V-12SD PROFACTOR™ 18V 12 In. Dual-Bevel Slide Miter Saw, (1) GBA18V80 18V CORE18V® Lithium-Ion 8 Ah High Power Battery, (1) 18V Charger, (1) 12 In. Miter Saw Blade, (1) Tool-Free Workpiece Clamp, (1) Dust Bag, (1) Blade Wrench |
