1-5/8 In. x 41/64 In. Carbide Tipped Ogee Stile Bit

Code: 85626M

1-5/8 In. x 41/64 In. Carbide Tipped Ogee Stile Bit Bosch 85626M

1-5/8 In. x 41/64 In. Carbide Tipped Ogee Stile Bit

Code: 85626M

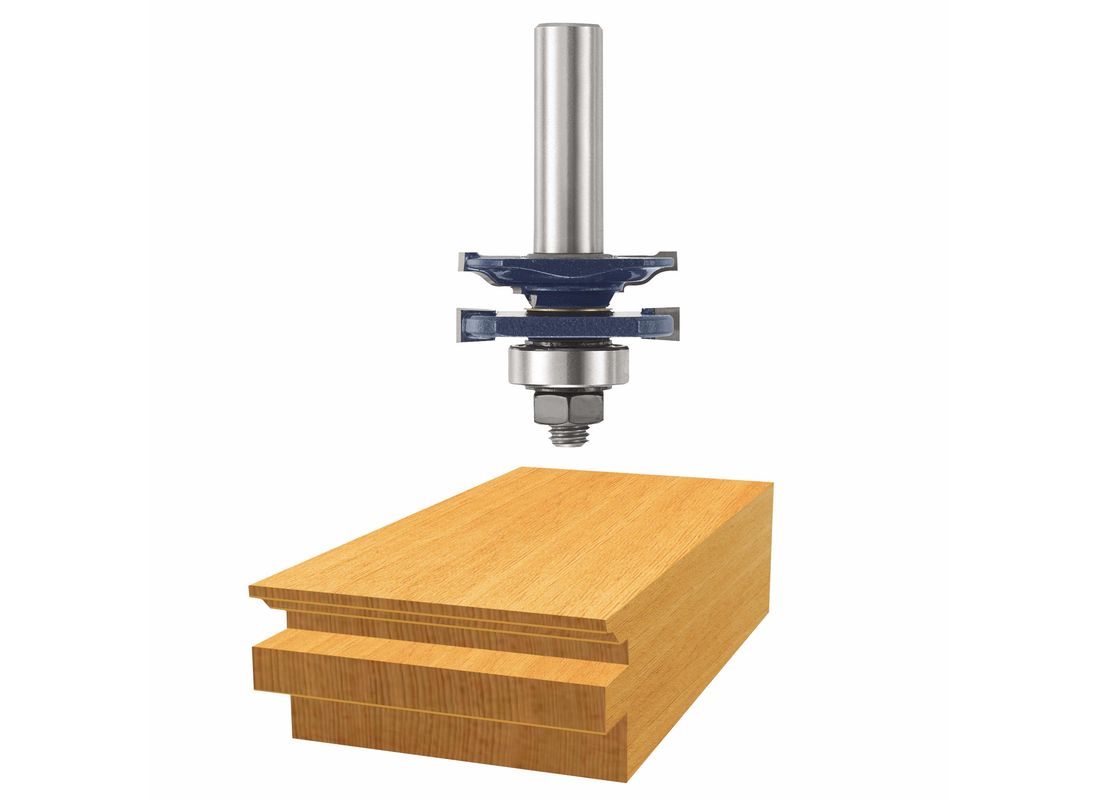

Premium-quality Micrograin carbide tips are ground on specialized CNC equipment for an extra-fine finish with maximum sharpness and edge retention. The stile bit is used for doing Ogee profile stile cuts for cabinet doors and all varieties of frame-and-panel assemblies for furniture and architectural applications. The fully hardened and tempered steel shank provides ultimate durability.
Need help?

* Prices are in Canadian dollars. Taxes and shipping not included.

Out of stock

Free shipping with order of $149.00 or more



Back to the products list
  • 1 Bit
  • A. Overall Diameter: 1-5/8"
  • B. Cutting Edge Length: 4/64"
  • C. Shank Diameter: 1/2"
  • D. Overall Length: 3"
  • Description: 1-5/8 In. x 41/64 In. Carbide Tipped Ogee Stile Bit
  • E. Decorative Cut Depth: 25/64"
  • F. Kerf: 1/4"
  • Flute Length: 0.671
  • G. Bearing Diameter: 7/8" (22 mm)
  • Number of Flutes: 2.0
  • Overall Length: 3.0
  • R. Radius: 3/16"
