12V Max EC Brushless Palm Edge Router (Bare Tool)

CodeGKF12V-25N

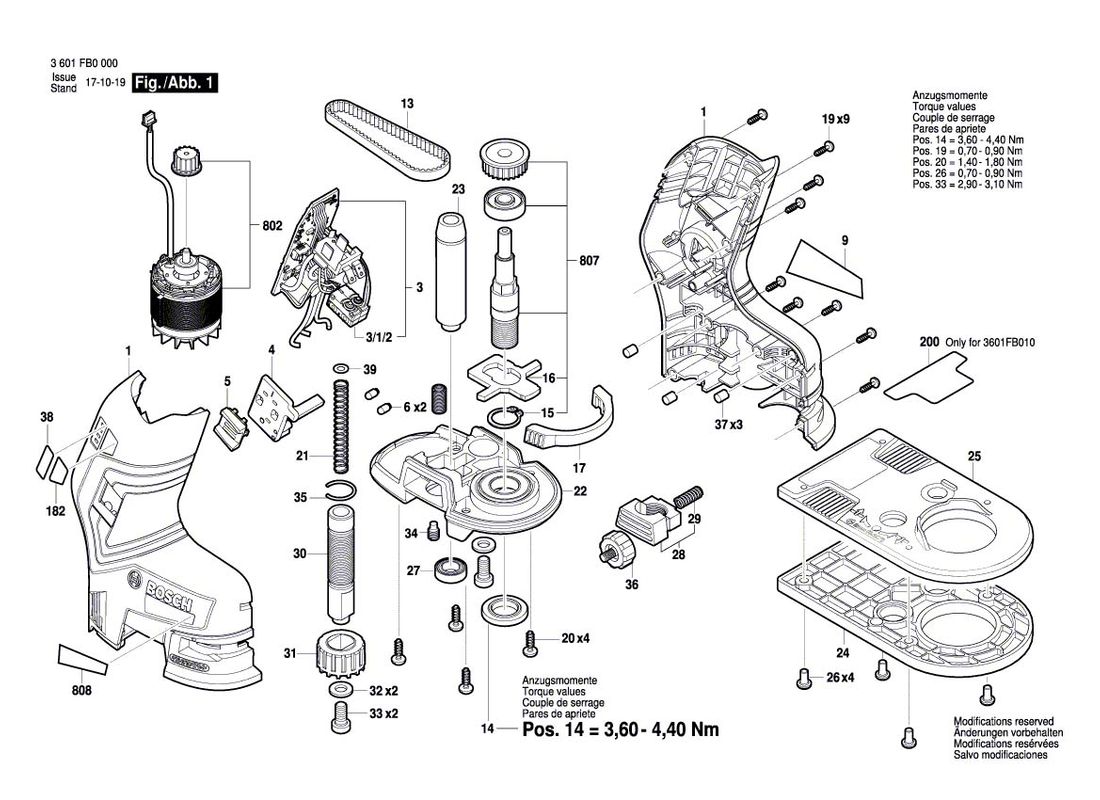

diagram 1 GKF12V-25N

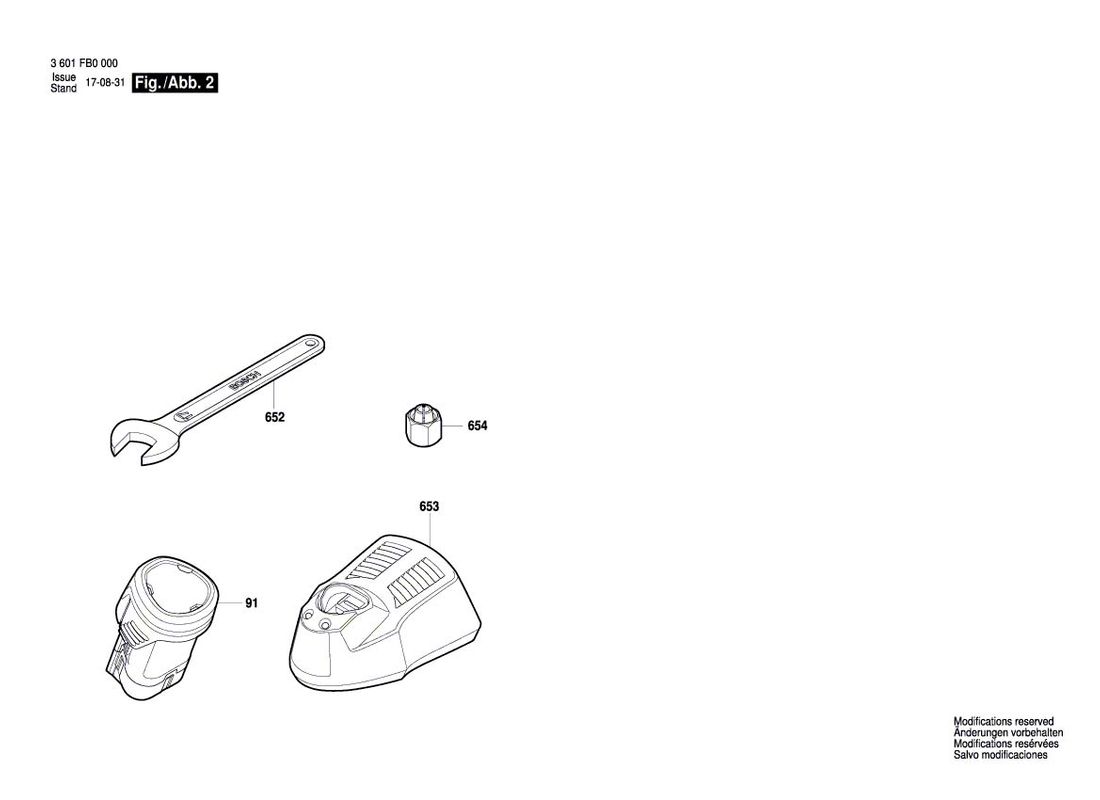

diagram 2 GKF12V-25N
  • diagram 1 GKF12V-25N
  • diagram 2 GKF12V-25N

12V Max EC Brushless Palm Edge Router (Bare Tool)

Code: GKF12V-25N

The Bosch GKF12V-25N 12 V Max Palm Edge Router delivers cordless freedom and a unique offset design, making this router the choice for comfortable, compact edge routing and trimming The ergonomic GKF12V-25 palm edge router is light weight and balanced. This professional cordless router is designed specifically to make edge routing and trimming easier. It features a unique ergonomic design that has most of the tool and its gripping areas positioned over the workpiece for maximum stability when edge-forming. It weighs only 2.2 Lbs. (tool only, not including battery). The EC Brushless motor helps to provide great runtime. When rounding 0.2 In. of beech, this unit delivers 23 Ft. of routing per battery Amp hour (Ah). It has an easy-change spindle lock, fast macro depth adjustment, and easy fine depth adjustment at 0.04 In. per revolution of the dial. For user protection, it includes finger barriers to help prevent contact with the bit area. This is a bare-tool kit; the battery and charger are sold separately.

Free shipping with order of $149.00 or more

Pos. Part Description Qty Price
2603490021 Torx Oval-Head Screw $1.14
2916011014 Plain Washer $1.89
2603100056 Rubber Buffer $1.89
2603490017 Torx Oval-Head Screw $1.14
2600590006 Ratchet Cap $1.89
2607337237 Please contact us for the price and availability
2607225519 $21.92
16058065M2 $25.24
16072335DH $82.31
2607202355 $7.22
1600A00N99 $1.89
1600A011L4 $1.14
160111C2AY $2.29
1600A00D66 $4.93
2609110253 Self-locking nut $3.37
2916650006 Spring retaining ring $1.89
1600A00P4H $6.25
1600A00P4K $2.29
160461201U $1.14
16058080A8 $25.24
1600A00N9B $8.29
1600A00N9C $8.29
1600A011HJ $14.60
2603413035 Oval-Head Screw $1.14
160090006Y $2.29
1600A00N9E $14.60
160461201X $1.14
1600A00N9J $9.60
1600A00N9L $1.89
1600A00JN1 $1.14
1600A00JN2 $1.14
2916550006 $1.14
1600A00P4M $7.22
160111C25N $2.29
1600A0145D $1.14
1600A013UA $2.29
160111C25R $7.22
1607000CM2 $63.81
1607000CM3 $36.99
160111A5CL $2.29
2609110438 Single-Head Eng. Wrench $7.22
1600A00H85 $11.03
